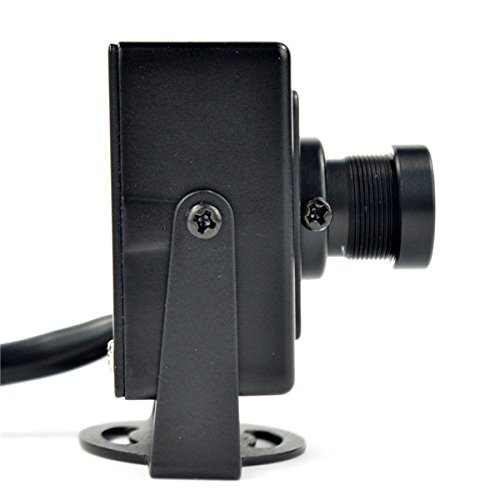

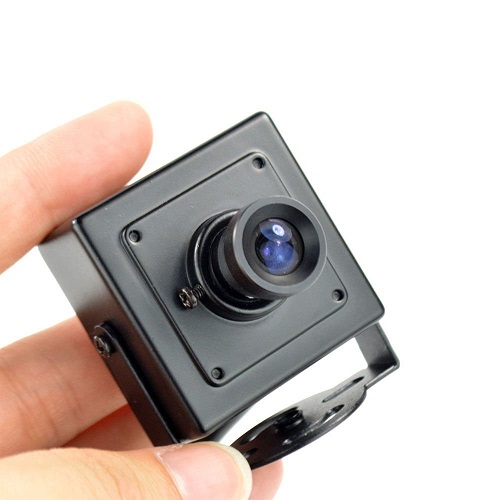

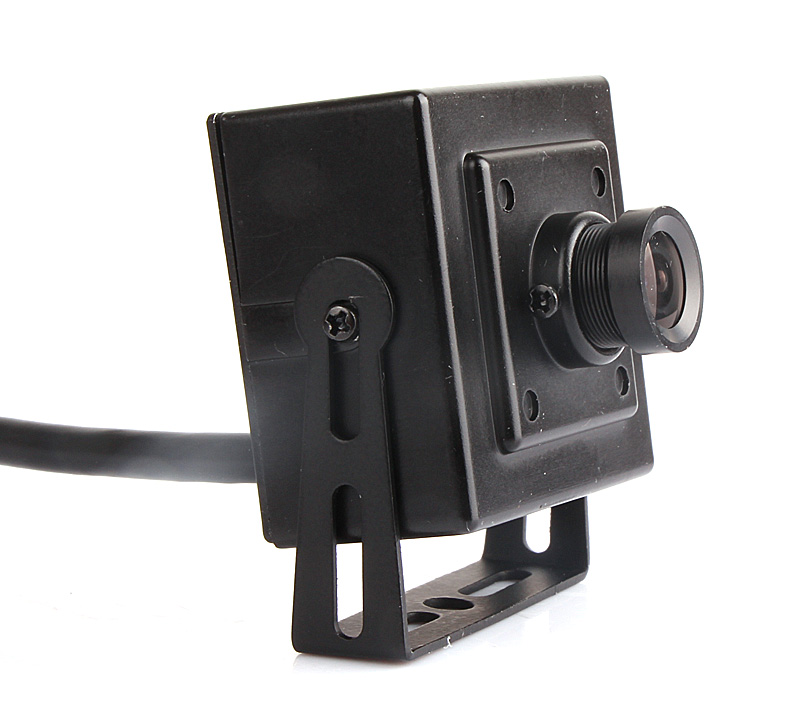

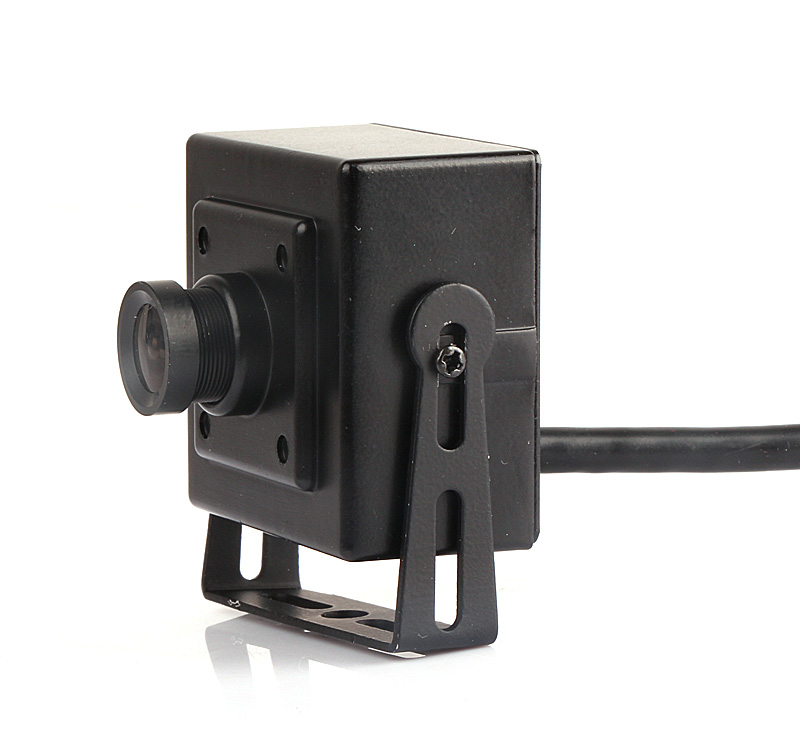

4-in-1 CVI/TVI/AHD/ANALOG(CVBS) Vandal Proof Elevator Camera 2.8mm Wide Angle Lens, Dip Switch.
Features:
- Hybrid board Camera 4 in 1
- AHD/CVI/TVI/CVBS signal shift with DIP Switch
- Resolution: 8MP/5MP/2MP TVI/CVI/AHD, 960H CVBS*****
- 0.05Lux
- 2.8mm Wide angle Lens
- Vandal Proof Elevator Camera
- Compact and Lightweight Camera
- Built-in MIC (for CVI or TVI Video Format Only)
- DC 12V 500mA (NOT INCLUDED)
****Audio Function, Make sure CVI and TVI DVR/XVR support (Audio Over Coax) function, otherwise will not working. (AHD and CVBS video format are Not Support Audio output for this Camera)
| Sensor | HD CMOS Sensor |
| System | NTSC /PAL |
| Effective Pixel | 8MP - HD Model - 3840 x 2160P
5MP - HD Model - 2560 x 1920P
2MP - HD Model- 1920 x1080P |
| Illumination | 0.005 LUX / F1.2 |
| Resolution | HD-TVI/CVI/AHD/960H |
| Scanning Frequency | 60Hz |
| Gamma | 0.45 |
| Electronic Shutter | 1/60～1/100000s |
| S/N | >46dB |
| Lens | 2.8mm Lens |
| Microphone | Built-in Mic (TVI and CVI )Video Format Only |
| Video Output | 1.0V p-p Shift to TVI/CVI/CVBS by DIP Switch |
| Operation Temperature | -20 ºC to 50 ºC |
| Working Humidity | Relative humidity less than 95% |
| Power | DC12V (±10%) |
*** All Specifications are subject to change without notice.
