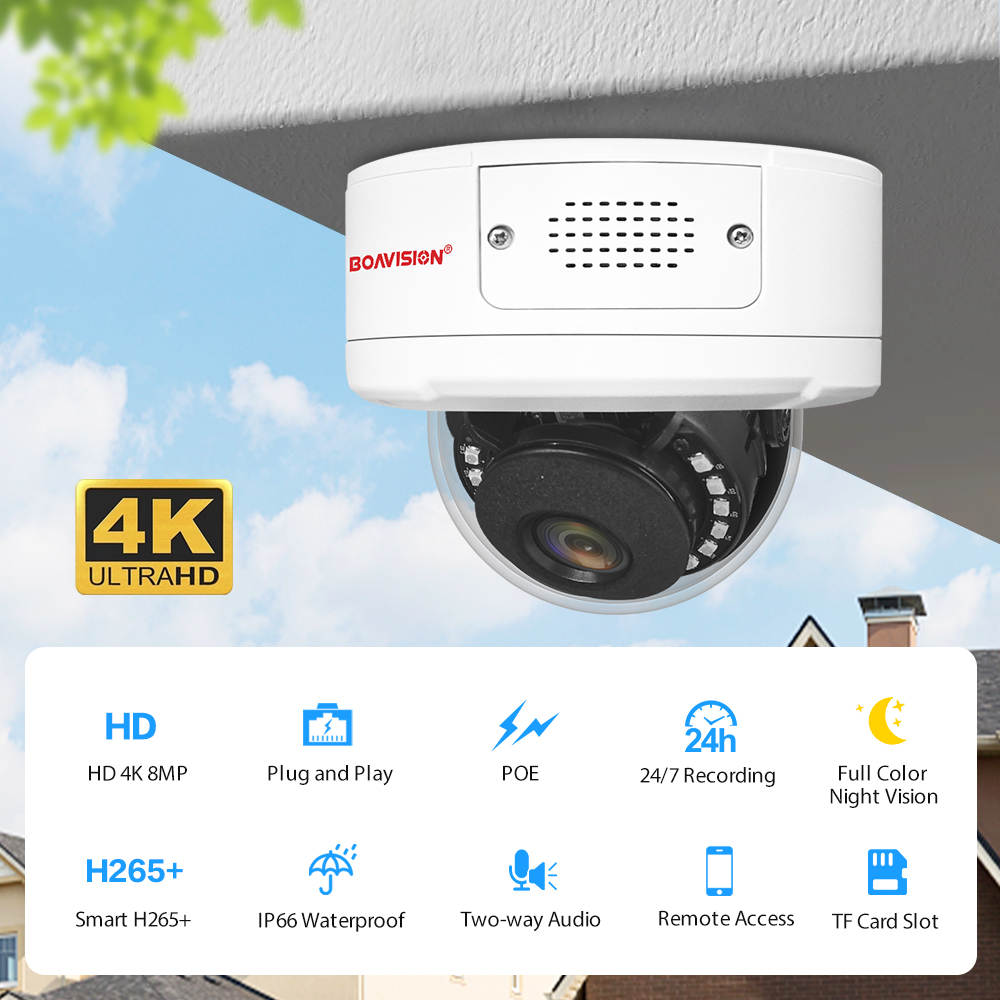

Ultra HD 8MP 4K Security Camera Two Way Audio TF Card Slot Humanoid Detection H.265 POE Surveillance Camera
Product overview :
- Metal HD IP Dome camera 1/2.8 "8.0 megapixel black-light CMOS sensor;
- Support humanoid detection;
- Support two streams output at the same time, the highest resolution of the main stream 4MP: 2592*1520@25fps/5MP:2592*1944@ 25fps/8MP:3840* 2160@20fps;
- Support image flipping, digital wide dynamic, TZIP, TPIC;
- Support H.265+, H.265, H.264 encoding;
- Support intelligent analysis;
- Built-in: MIC & Speaker
- Built-in SD Card Slot.
- Mobile phone monitoring; Seetong APP
- Support access standard Onvif, GB28181 platform;
- Support character overlay;
- Power Input: 12VDC or PoE
| Model | HX-800BI-B |
| IMAGE SENSOR | 1/2.8" +So-ny415 |
| Video compression | H.265/H.264 video coding, support dual stream, AVI format; code stream200k~8000k bps adjustable, low bit rate, support PAL and NTSC. |
| MIN. ILLUMINATION | [email protected](color),0Lux(IR ON) |
| Frame Rates | 4K @20FPS,Other resolutions default to 30 frames |
| VIDEO FRAME RATE | Mainstream:3840×2160,2592×1944,2592×1520,2560×1440,2048×1520,2304×1296,1920×1080; Sub stream:800×448,720×480,640×480,640×360,480×360,352×288; |
| Audio Interface | 1channel input, support mic or pickup input;1channel output, support headset or amplifier play |
| Audio code | G.711 CODEC standard, support dual voice talkback, audio and video synchronization |
| APERTURE | F1.4 |
| Network Interface | 1*RJ45 Ethernet interface,10/100M self-adaption,8KV anti-static electric capacity; support RTSP/DHCP/NTP,GB/T28181,compatible ONVIF and so on network protocols |
| Focal length | 3.6mm |
| TF Card Slot | support (128G) |
| Network interface | Built in RJ45 network interface support 10M/100M IP DATA |
| Smart Alarm | humanoid and vehicle detection/motion detection/ video loss/network cable disconnection/IP address conflict |
| Network protocol | TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP, NTP, UPNP |
| Interface protocol | ONVIF protocol |
| Power Consumption | MAX 5W |
| INGRESS PROTECTION | IP66 |
| P2P | Android IOS |
| POWER SUPPLY | DC12V±10% OR POE |
| WORKING ENVIRONMENT | -10°C~+50°C / Less than 95%RH (no condensation). |
