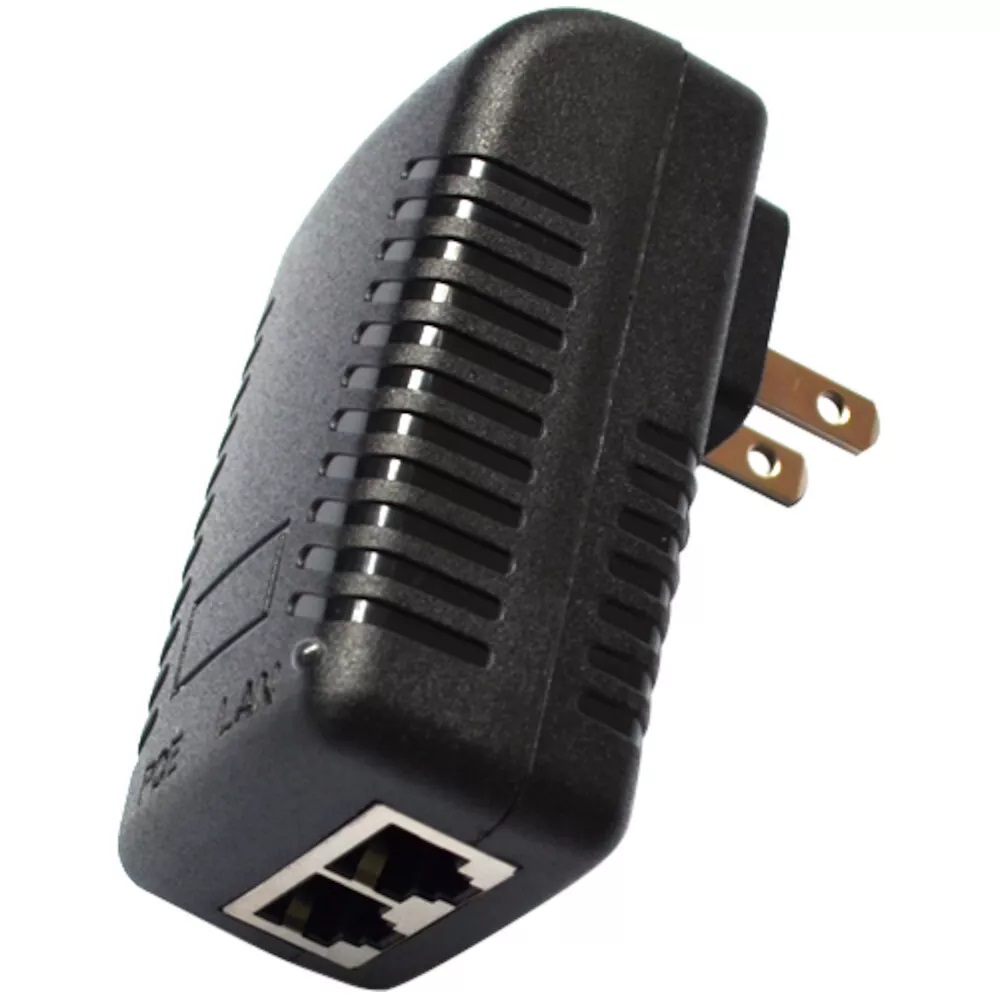

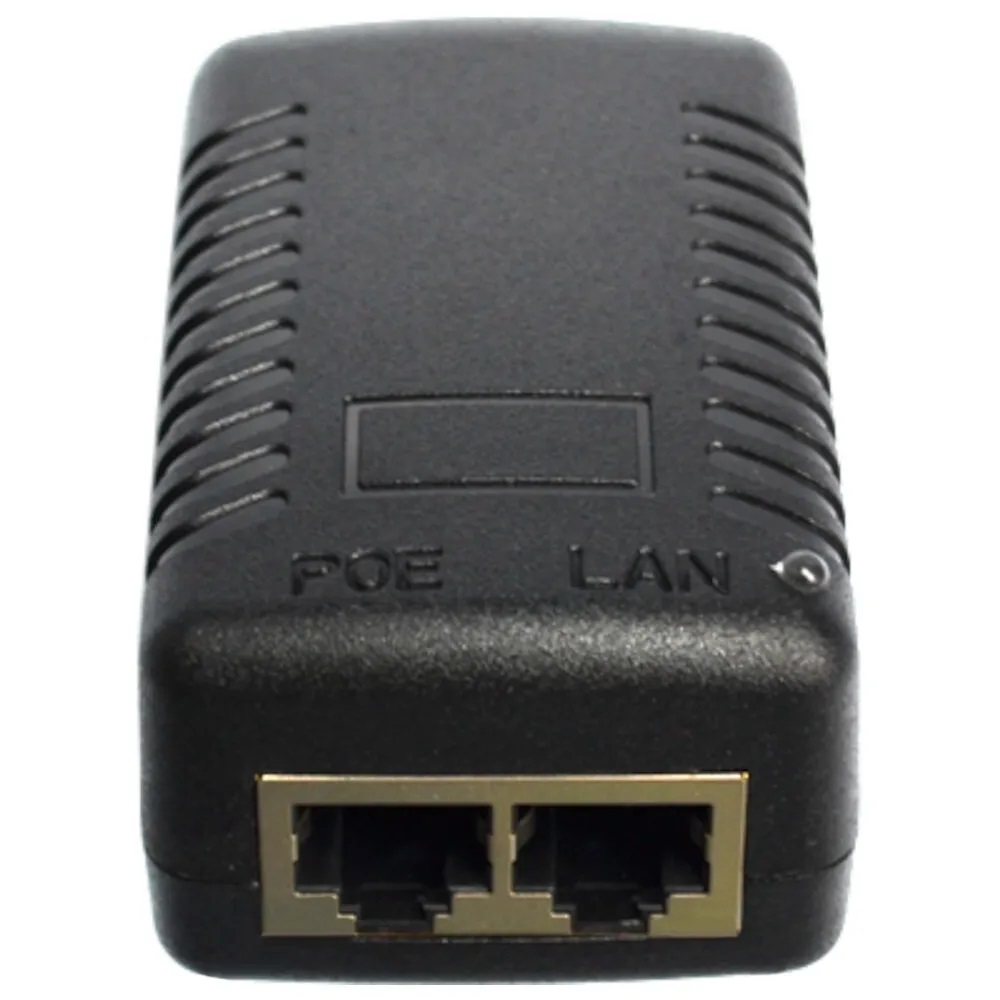

48V 0.5A POE Injector Power Over Ethernet (POE) Adapter
***Optional: 10/100Mbs PoE Adapter or 10/100/1000Mbs PoE Adapter
Description:
POE (Power Over Ethernet) refers to the existing Ethernet Cat.5 cabling infrastructure don't do any changes, transmit data signals for some based on IP terminal (e.g.,IP telephone, wireless LAN Access Point, webcams, etc.) ,at the same time also provide such equipment with technology of DC Power supply.

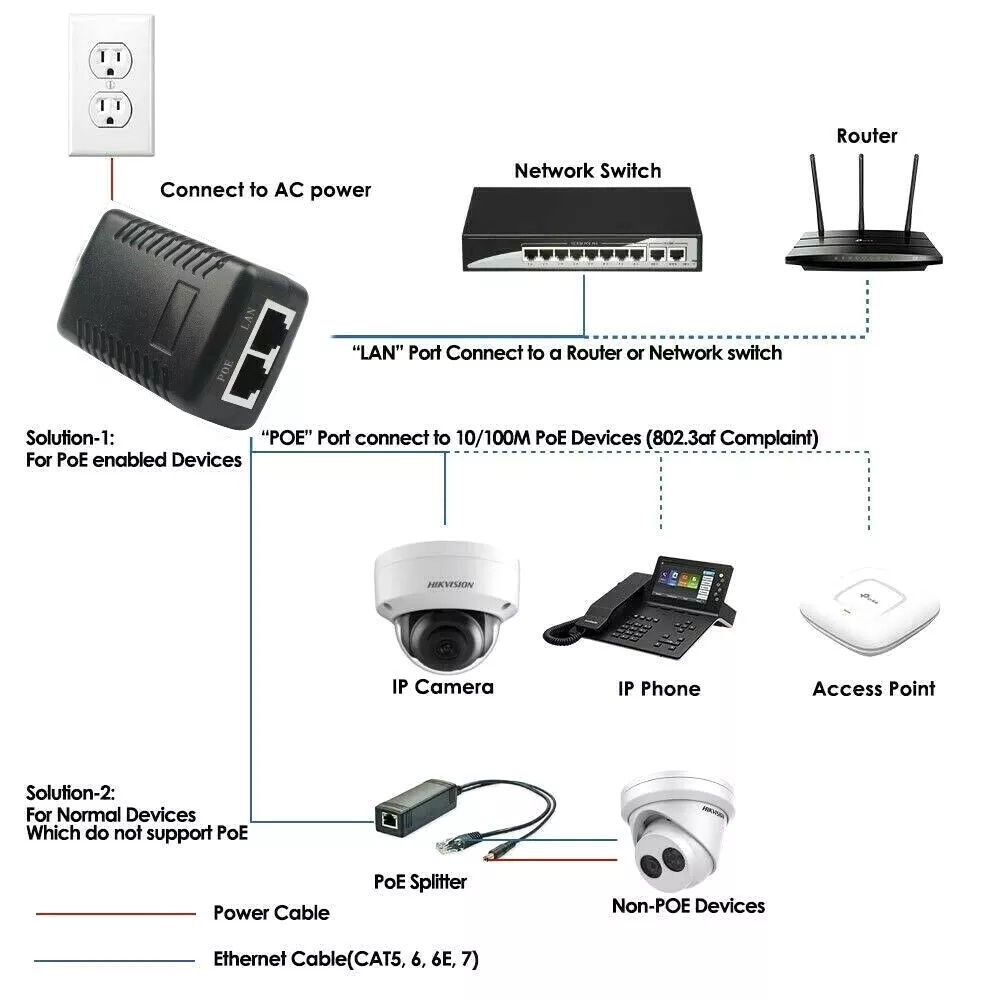

- This injector lets you power 802.3af compatible devices, with no additional adapter needed. Just plug the network cable(not included) into your network switch and into the "Data In" port, then plug the cable to your device into the "PoE" port with your existing network cable
- This Adapter support 10/100/1000Mbps gigabit Ethernet connection, RJ45 PoE port using 4,5,7,8 pin as power transfer, Please do not connect any device that does not support the "PoE" port, this will damage your device
- This is an 802.3af compatible device, but it does NOT include the 802.3af/802.3at compliant detection feature. It supplies power NO MATTER WHAT, so don't plug the "PoE" side into anything that isn't ready for it
Features:
- Cost Saving, No Power Cabling for WLAN AP, IP Phone and any supported IEEE802.3af Powered Device
- Meeting IEEE 802.3af standards and more sufficiently is able to provide power to PD devices
- Small lightweight plastic enclosure
- Built-in universal 100-240V AC switching power supply
- Standard RJ45 Cat.5 Ethernet data input and output
- Easy, convenient, and simple to use
- Compatible 10/100/1000 Ethernet
Specifications:
- Voltage Input: AC 100-240V 50/60Hz
- Voltage Output: DC 48V 0.5A
- Dimension: Approx.8.2 X 4.5 X 3.5cm/3.23" X 1.77" X 1.38"(L X W X H)
- CAT5 Ethernet Pin Usage: Data: 1,2,3,6 Power: +(4,5),-(7,8)
- Compatible with: all 802.3af PoE power device as Wireless Access Point, IP Phone, IP camera, Gateway, Switch, or More.....
- Plug Type: US Plug
- Standards: 802.3af
Package Included:
- 1x 48V 0.5A PoE Injector Power Over Ethernet Adapter
