16CH 5IN1 4K/8MP DVR H.265+ Digital Video Recorder for CCTV BNC Security Camera

System

Model

16CH

Chip

NT98336

Preview

1/4/8/9/16

Video

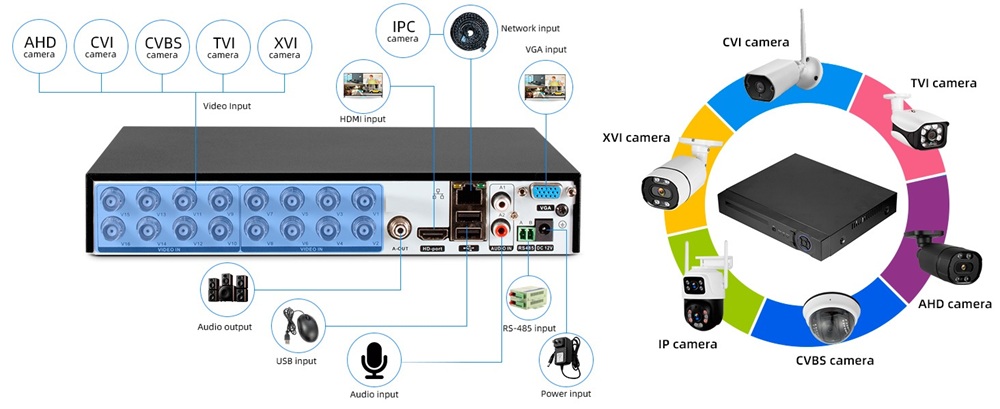

Video input

16CH BNC

Codec

H.265+/H.264

Display

Quality

Max 4K

PreView

Quality

16*8M@7.5fps(6 in 1)(XVI)

16*5M@12.5fps(6 in 1)(XVI)

4M 15fps/3M 18fps/2MP 25fps(6 in 1)

Default:8M

Encode

Quality

16*8M@4fps(6 in 1)(XVI)

16*5M@6fps(6 in 1)(XVI)

4M 9fps/3M 10fps/2MP 16fps(6 in 1)

Default:8M

Decode

Quality

16*8M@4fps(6 in 1)(XVI)

16*5M@6fps(6 in 1)(XVI)

4M 9fps/3M 10fps/2MP 16fps(6 in 1)

Default:8M

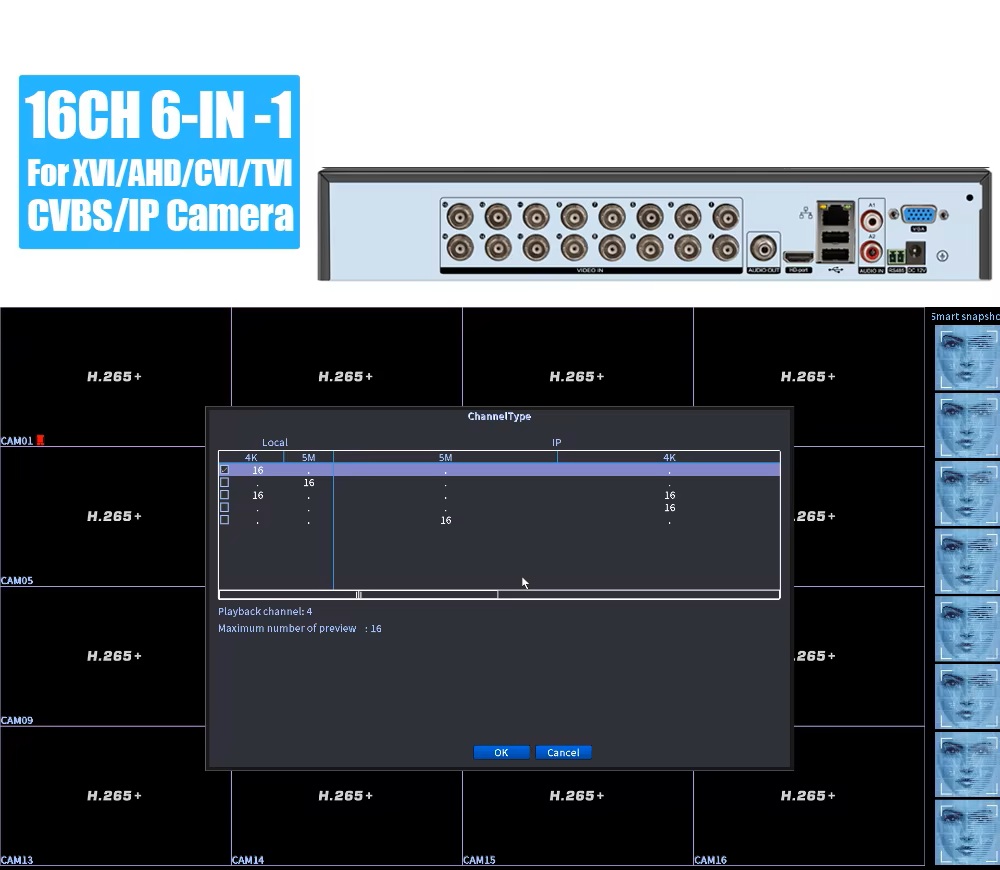

Multi-mode

input

Analog: 16*8M,16*5M

Hybrid: 16*8M(Analog)+16*8M(Network)

Network: 16*8MP; 16*5MP

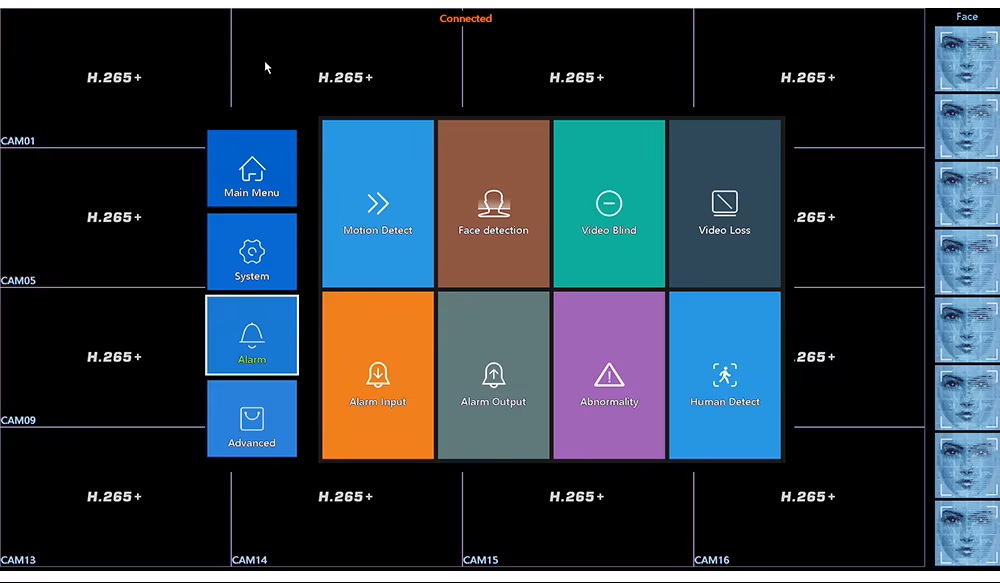

Motion

detection

Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set

(Limited local channel)

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Audio

Audio

Compression

711A

Audio Record

Not Support

Intercom

Support

Record &

Playback

Search mode

Local Playback

16CH(Analog input mode)

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

Video output

1ch VGA,1ch HDMI-Compatible HD output

Audio I/O

2/1

External interface

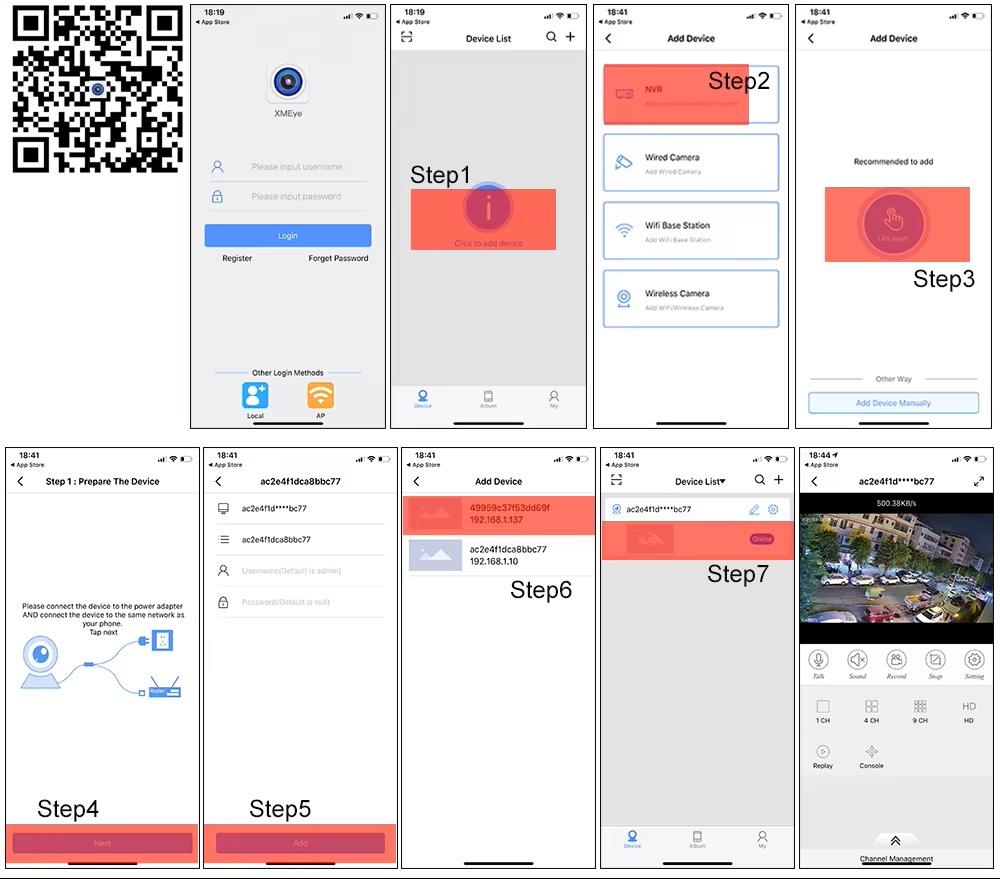

3G/WIFI

Support 7601 Adapter (Not include)

Network interface

1*RJ45 10M/100M Adaptive Ethernet port

USB interface

2*USB2.0 ports(Not support the keyboard)

HDD

2* SATA(Up to 14TB for each disk) (HDD is not include, you can choose)

ESATA

Not Support

Power supply

12V3A

Other

Power Consumption

<10W(Without HDD)
