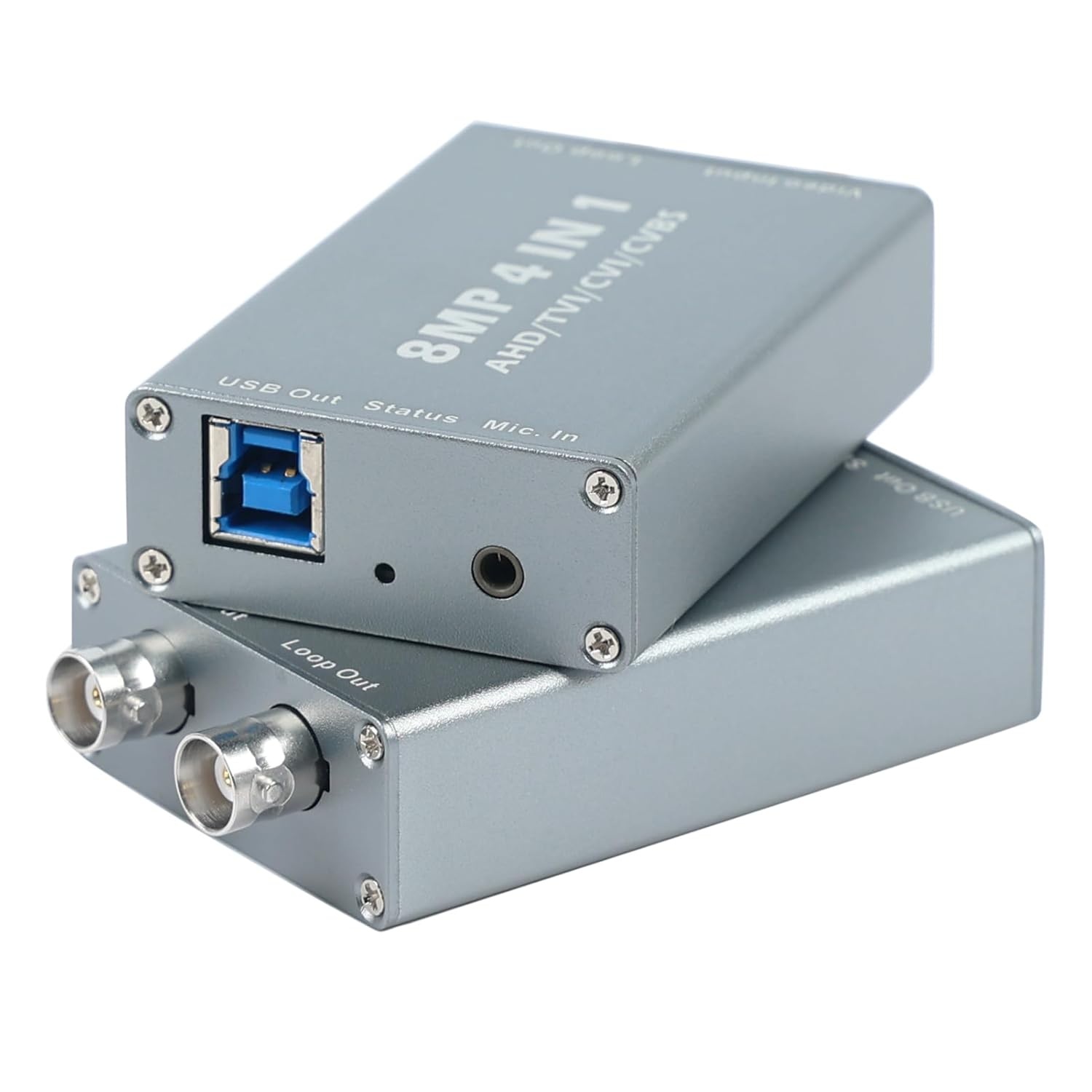

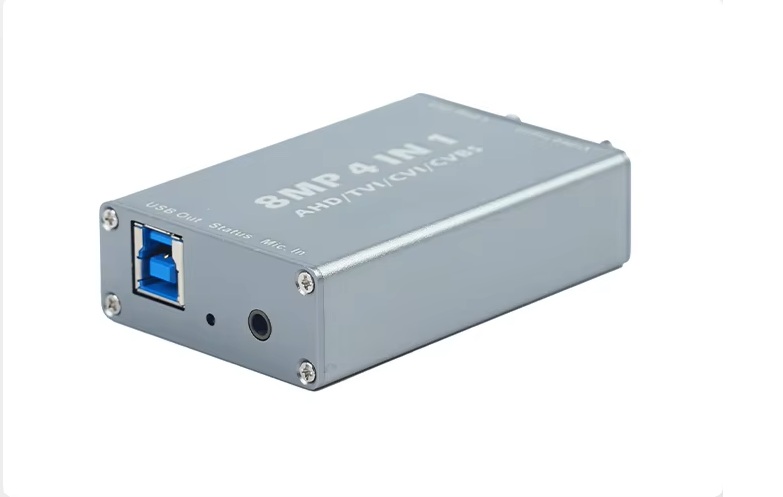

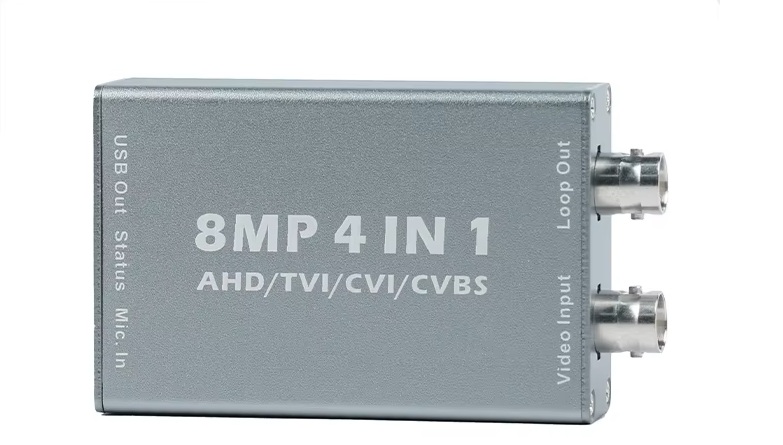

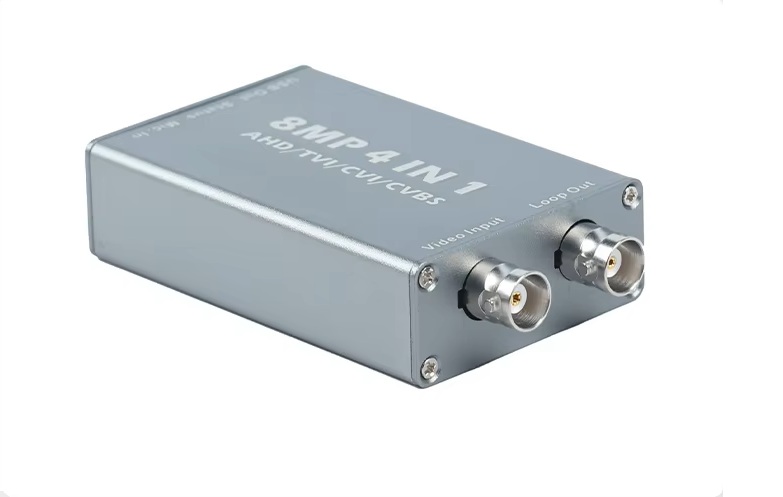

8MP 4-in-1 Video Capture Card BNC to USB Video Capture Card AHD TVI CVI Input and USB Output 1080 60fps Capture Plug and Play
4 in 1 AHD CVBS CVI TVI to USB Video Converter
It is a 4 in 1 capture card which support AHD/TVI/CVI/CVBS signal input, and USB output to computer. It capture video and audio both, it is a high cost effective AV capture card which support UVC/UAC STANDARD. The output port is USB 2.0. It compatible Windows, Linux and also Android system. It is a plug and play tools for HD AV capture.
Features:
- Support input :BNC; UP to 8MP
- Output interface : USB2.0/USB3.0
- Support output max resolution 1920x1080P,1600*1200P,1360*768P,1280*1024P,1280*960, 1280*720P, 1024*768P,800*600P,720*480P, 720*576P, 640*480P;
- Support Frame rate;5-60FPS select
- Support audio and video capture : standard UVC/UAC,
- Drive : NO need to install the driver , plug and play ;
- Support Windows and Linux, android operating system ;
- Conform to USB Video and UVC standard;
- Conform to USB Audio UAC standard;
- Without external power supply, compact and portable.
- Allowed for capture, commonly used acquisition software : OBS/potplayer(windows )
- Product power consumption: 3Watt
- Size : 87mm+10mm*51mm*21mm
Packing list:
- 1x USB Capture card
- 1x USB cable
- 1x Manual book
FUNCTIONAL:
4 in 1 CAPTURE converts AHD, CVBS, TVI, CVI and other camera signals into USB signals, and completes the collection and recording of camera signals and videos through computers, notebooks, mobile phones and other devices. At the same time, it supports lossless loop out and supports microphone synchronous audio input. The products are commonly used in security monitoring, medical equipment video capture, corporate video conferencing, education, phishing detection and other fields. Compatible with OBS, POTPLAYER, AMCAP, VLC and other acquisition software.
INSTRUCTIONS FOR USE. .

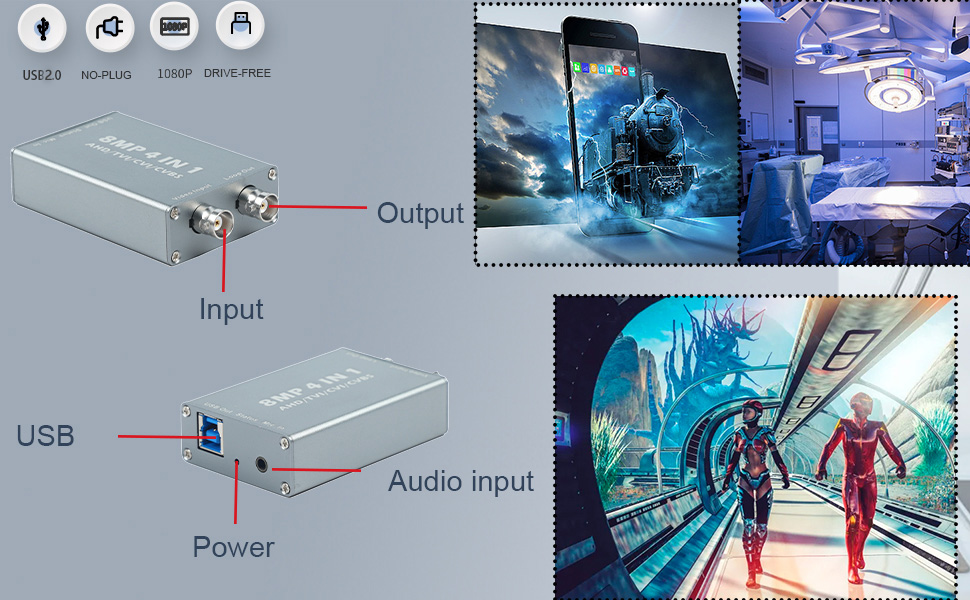

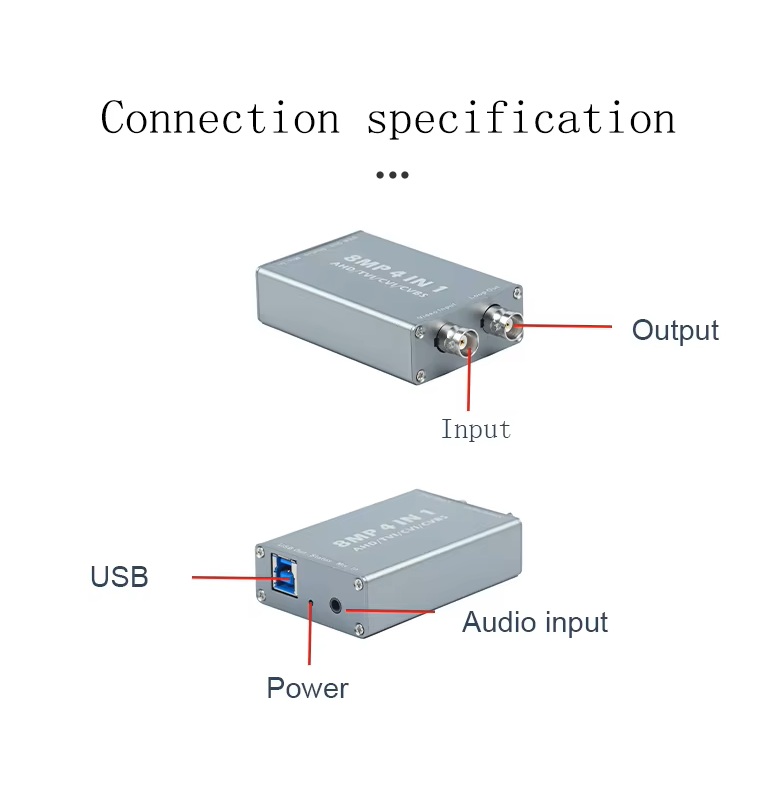

- Connect the signal source to the 4IN1 INPUT interface of the capture card, if you need the loop-out function, you can connect to the LOOPING OUT interface
- The USB OUTPUT of the capture card is connected to the computer through the USB cable, or the OTG head is connected to the mobile phone (drive-free)
- For audio input, connect the audio signal to the MIC IN interface
- Open the acquisition software on the acquisition computer, select the device AFN_ CAP VIDEO and activate it. At this time, the red LED light flashes, indicating that the signal acquisition is successful
Note: This product is a USB 2.0 speed output
