5MP Smart Dual Illuminators Eyeball Camera 2.8mm Lens, IR (131ft) Warm LED (131ft) Night Color Built in mic DWDR Starlight 12V DC

Camera

Pixel

5MP

Image Sensor

5MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s

Min. Illumination

0.001 lux@F1.0 (Color, 30 IRE)
0.0001 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2 (IR light)

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm;

Max. Aperture

F1.0

Field of View

2.8 mm: H: 111°; V: 57°; D: 131°


Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.5 m (4.92 ft)


DORI distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66.0 m

(216.54 ft)

26.4 m

(86.61 ft)

13.2 m

(43.31 ft)

6.6 m

(21.65 ft)

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps;
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps;
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620);
4M (2560 × 1440);
1080p (1920 × 1080);
960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto; Area white balance

Gain Control

Auto; manual

Noise Reduction

3D NR

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 5.7 W (12 VDC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (-40 °F to 140 °F)

Protection

IP67

Structure

Casing Material

Metal

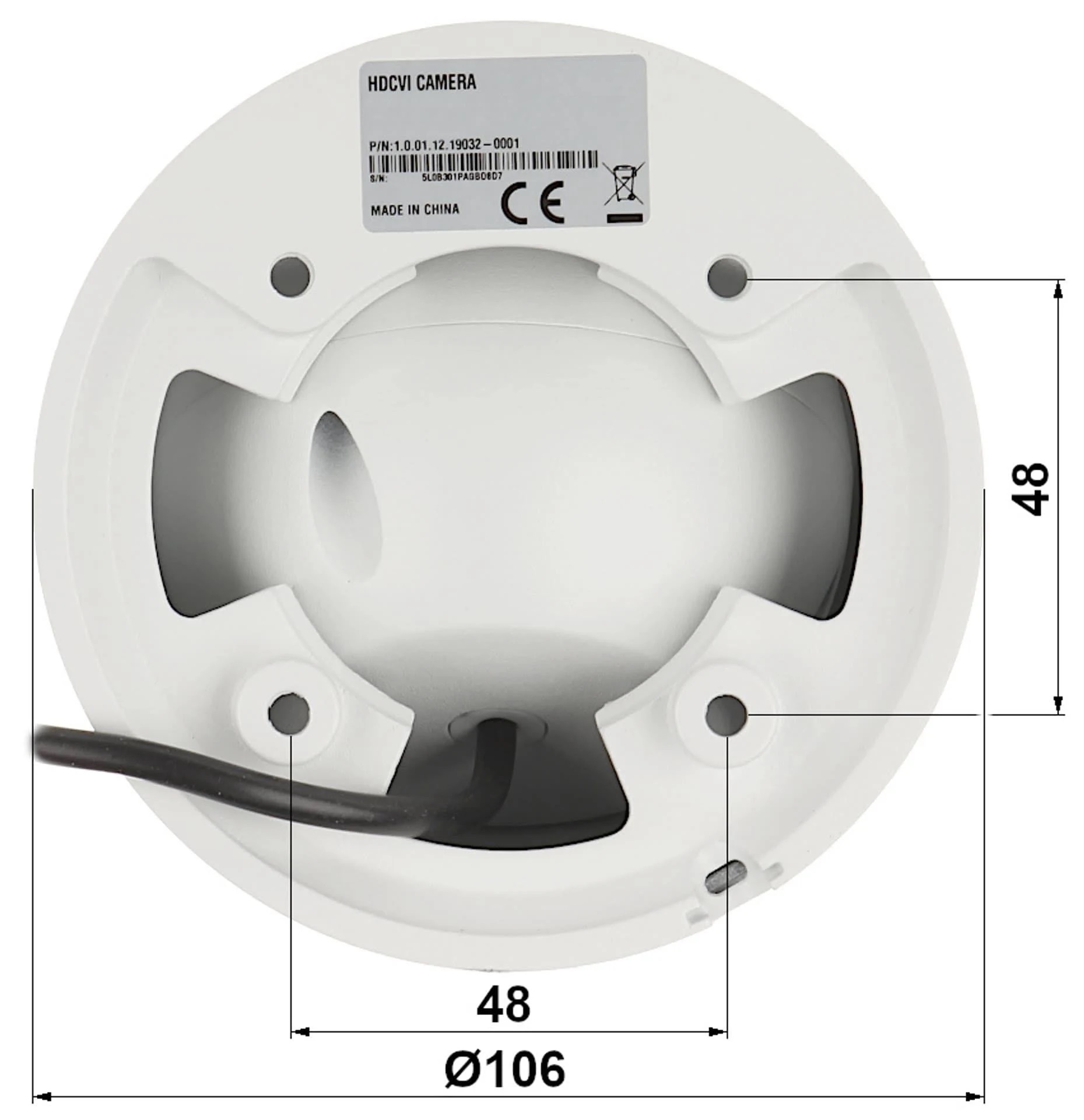

Product Dimensions

Φ106.0 mm × 93.6 mm (Φ4.17" × 3.69")

Packaging Dimensions

148 mm × 139 mm × 137 mm (5.83" × 5.47" × 5.39")

Net Weight

0.49 kg (1.08 lb)

Gross Weight

0.66 kg (1.46 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
