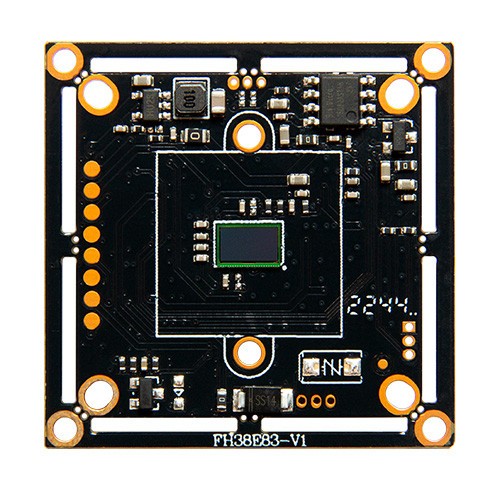

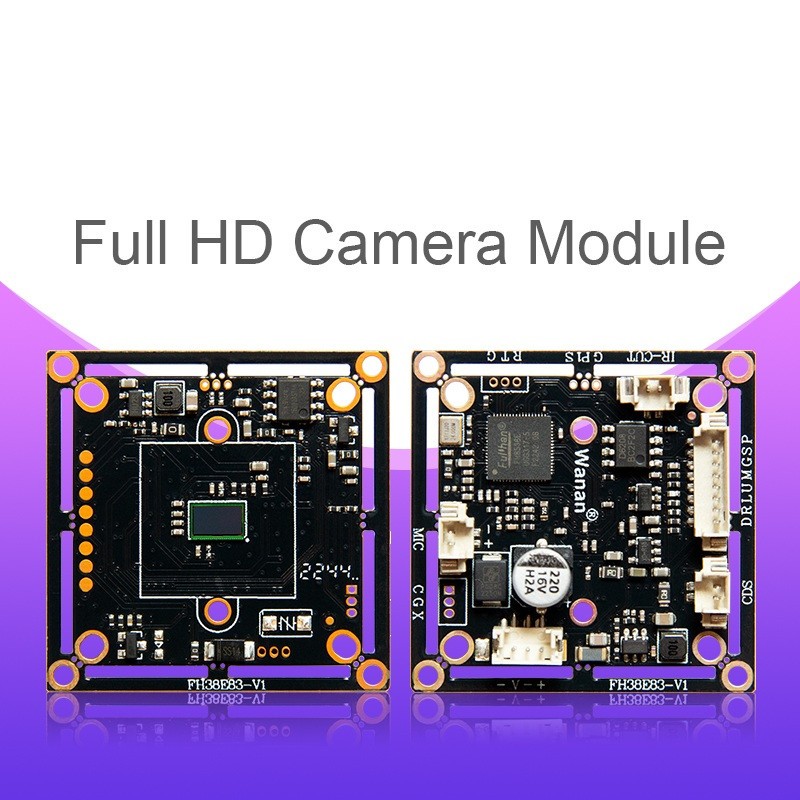

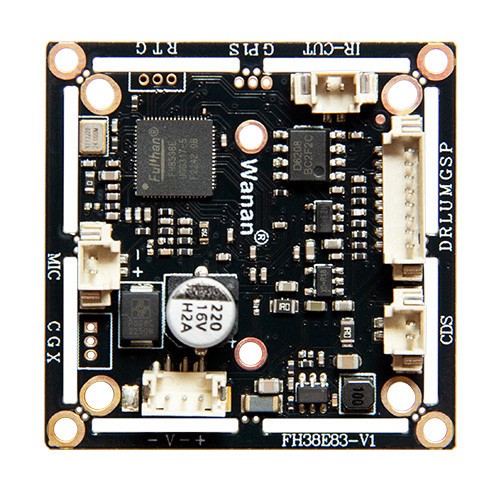

HD 5MP/2MP 4in1 AHD TVI CVI CVBs Security CCTV Camera Module PCB board Dip Switch with 3.6mm lens
* This camera module have 4 MODE for video output: AHD, CVI, TVI and CVBS

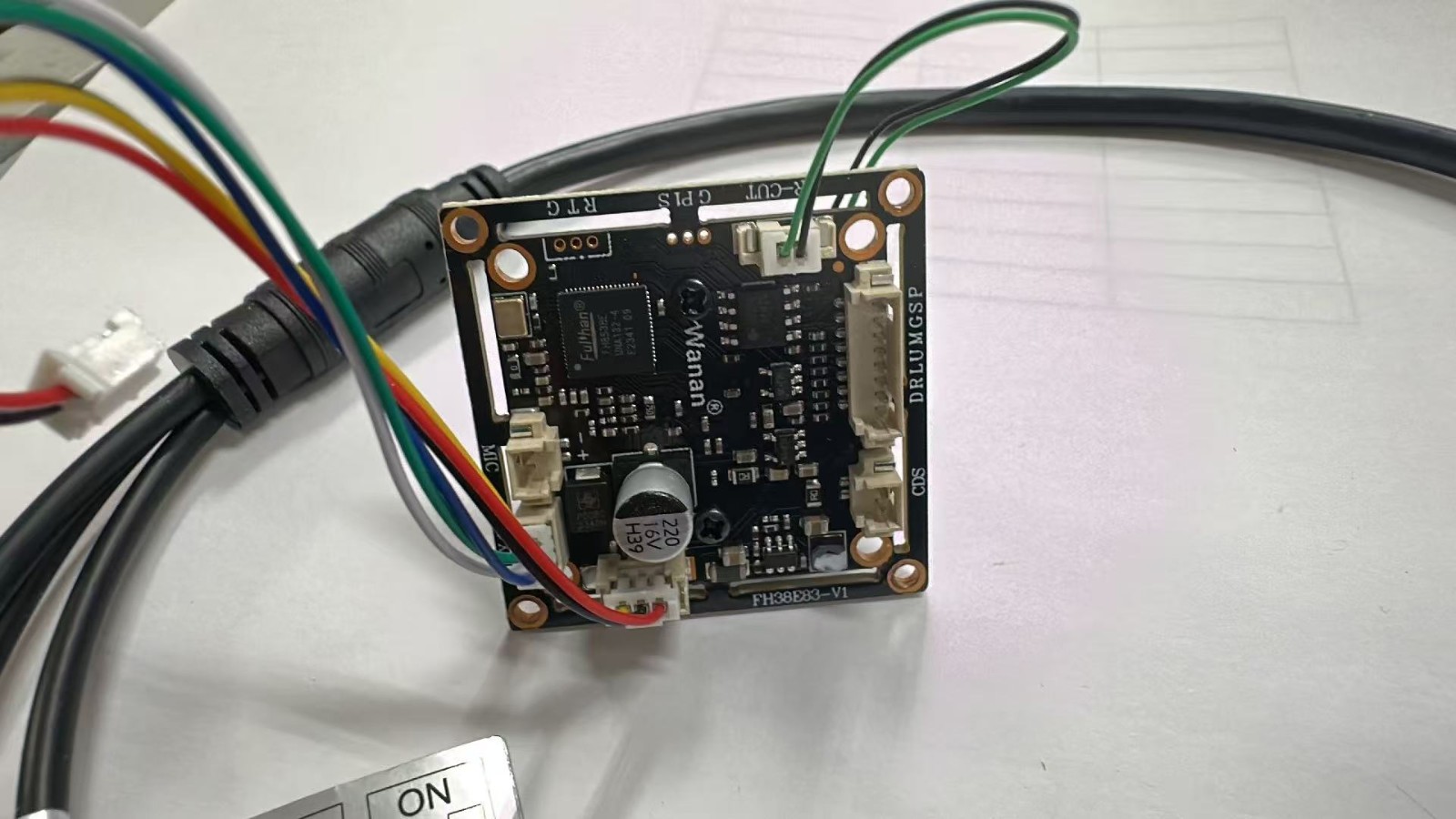

* Default MODE is CVBS MODE, please change to corresponding VIDEO MODE by Dip Switch cable according to your DVR.
Feature:
- 1/2.5" 5MP progressive scan CMOS Sensor.
- Resolution: 2560(H)*1920(V) 5mp
- 1/2.5" 2MP progressive scan CMOS Sensor,
- Resolution: 1920(H)*1080(V) 2mp
- TV system: NTSC / PAL in one
- Video Output: Multi-resolution
- Capture moving images, HD Excellent performance, with clear and bright image
- Illumination: 0.001Lux/(F1.2,AGC ON), 0LUX with IR
- D/N Switch: support IR-CUT switch, CDS external control
- Support OSD menu control, Suitable for user-defined Settings.
- Support DWDR.
- Adaptive Digital Noise Reduction, 2D-DNR, 3D-DNR
- 3.6mm lens
- Power: 12 V DC (Power adapter Not Included)
| Sensor | HD CMOS |
| Format | PAL/NTSC |
| Effective Pixel | 2560(H)*1920(V) 5mp 1920(H)*1080(V) 2MP |
| Illumination | 0.001Lux/(F1.2, AGC ON), 0LUX with IR |
| Shutter | AUTO |
| D/N Mode | EXT (Default) /AUTO/COLOR/B/W |
| Synchronously | Internal |
| Video Output | AHD/TVI/CVI/CVBS switch |
| Exposure | Shutter/AGC/Brightness/DWDR |
| White Balance | ATW/MWB |
| D/N Mode | Infrared/Internal AUTO/Color/B&W |
| Adjust | Sharpness/Display Screen/Edge DPC/Output mode |
| Language | CHN1/ENG |
| Operation Temperature | -20℃ to 60℃ |
| Working Humidity | Relative humidity less than 90 % |
| Power | DC12V(±20%) - 70MA |
| Size | 32*32/38*38 (mm) |
