UNV 4K 16-Channel Hybrid XVR With 16 BNC, 8 IP, with 2 SATA HDD Bays, NDAA Compliant (XVR302-16Q3)

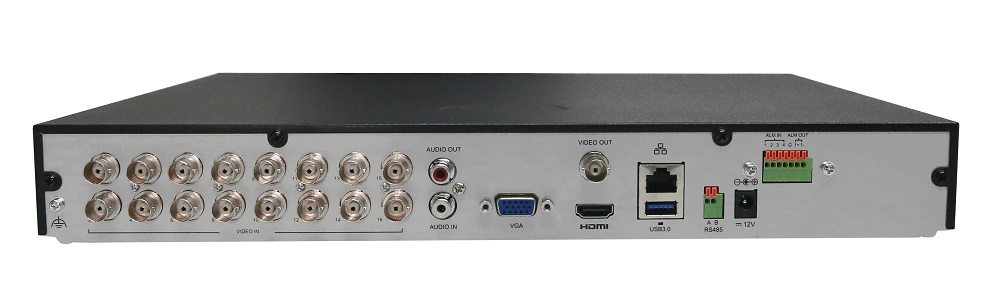

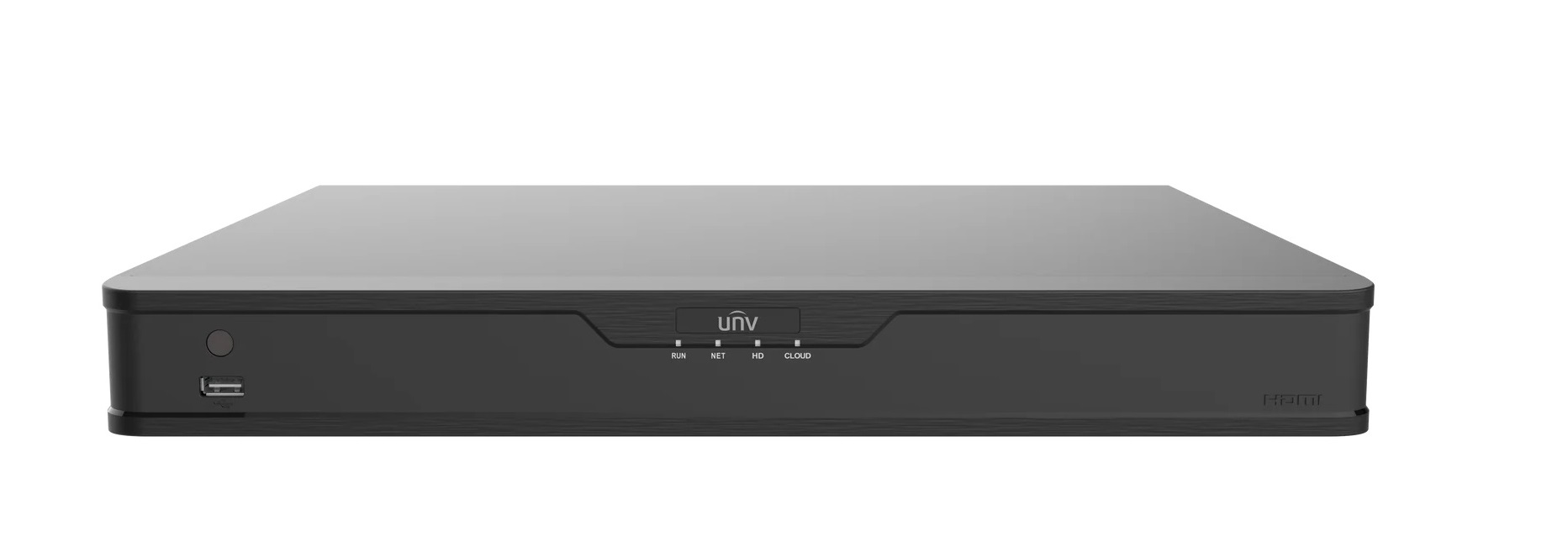

(image for) UNV 4K 16-Channel Hybrid XVR With 16 BNC, 8 IP, with 2 SATA HDD Bays, NDAA Compliant (XVR302-16Q3)
UNV 4K 16-Channel Hybrid XVR With 16 BNC, 8 IP, with 2 SATA HDD Bays, NDAA Compliant (XVR302-16Q3)
  • Model: XVR302-16Q3
  • Shipping Weight: 8 lbs
  • 5 Units in Stock
  • Manufactured by: Uniview

 Ask a Question
✓Warranty
◉Free Lifetime Tech Support
▣Fast U.S. Shipping
🔒Secure Checkout


$599.95

Low Stock 5 left in stock
Add to Cart:
BEFORE YOU ORDER

Compatibility & Installation

Confirm the key installation details before purchasing to help avoid compatibility issues and returns.

⚡
Power / PoE Verify voltage, amperage, PoE standard, and power-supply requirements.
▣
Recorder / Network Confirm recorder type, supported resolution, protocol, and network requirements.
↔
Connections Check connector type, cabling, adapters, and required accessories.
⌂
Mounting / Environment Confirm mounting location, indoor/outdoor rating, dimensions, and installation space.
Not sure if this product will work with your system? Send us your existing model number or installation details before ordering.
Ask Compatibility Question

Product Overview

UNV 16 Channel 2-SATA 1U Pentabrid DVR

Part Number: XVR302-16Q3

Video Input: 16 Channel BNC / Up to 24 Channel IP
Video Output: 1-HDMI(4K), 1-VGA(1080P), 1-BNC(CVBS), Simultaneous Output
Video Format: HD-CVI (8MP), HD-TVI (8MP), AHD (8MP), CVBS
Recording Resolutions: Analog Channels - 8MP Lite@8fps, 5MP Lite@12fps, 1080P@15fps; IP Channels - 8MP(4K)@30fps
Bandwidth: 80Mbps (In) / 160Mbps (Out)
HDD Storage: 2-SATA up to 8TB each
Network Ports: Single 10M/100M/1000M NIC
Chassis: 1U, Rackmountable (Rack ears not included in package)
NDAA Compliant: Yes
Warranty Period: 3 Years

ModelXVR302-16Q3
Type16-Channel 2 SATA XVR
SATA2 SATA interface
CapacityUp to 8TB for each HDD
(The maximum HDD capacity varies with environment temperature)
Analog Video Input16-ch, BNC
IP Video Input8-ch(only IP up to 24ch), each channel up to 8MP
Supported Analog Camera TypesSupport AHD input: 8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input: 8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input: 8MP@15fps
5MP@25fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input

Audio CompressionG.711U
Audio Input1-ch, RCA
CVBS Output1-ch, BNC
VGA Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output1-ch, RCA
Two-way Audio1-ch, RCA
Live view displayHDMI/VGA: 1/4/6/8/9/16/25
Synchronous Playback16
FTP/Schedule/Event Snapshot8-ch snapshot, up to 704*576 resolution
Recording Resolution8MP Lite/5MP Lite/4MP Lite /1080P/720P/CIF
Recording Frame RateMain stream: 8MP Lite@8fps | 5MP Lite @12fps | 4MP Lite@15fps | 1080P@15fps | 720p@30fps
Sub stream: D1@8fps | D1@12fps | D1@15fps | D1@15fps | D1@30fps
Audio Sample Rate8KHz,16 bit per channel
Audio Bit Rate64Kbps per channel
CapabilityAnalog: 16 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16x 1080P@15
IP: 24 x D1@30, 16 x 720P@30, 8 x 1080P@30
ProtocolsTCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Incoming Bandwidth80Mbps (Up to 112Mbps after all analog channel conversion)
Outgoing Bandwidth160Mbps
Web BrowserIE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows

Remote Users128
General AlarmMotion detection
Alert AlarmIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
VCA DetectionUltra Motion Detection(UMD) for analog:8-ch
VCA SearchBehavior Search
Network Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB InterfaceRear panel: 1 x USB3.0, Front panel: 1xUSB2.0
RS4851
Alarm In4-ch
Alarm Out1-ch
Power12V DC
Power Consumption: ≤ 12 W (without HDD)
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions380mm ×326mm× 53mm (15.0" × 12.8"×2.1")
Weight≤2.0 Kg (4.4lb)
CertificationUL /CE /FCC /RoHS /WEEE
