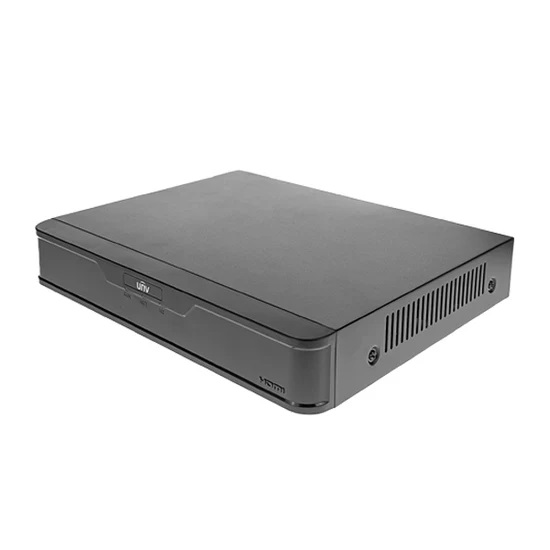

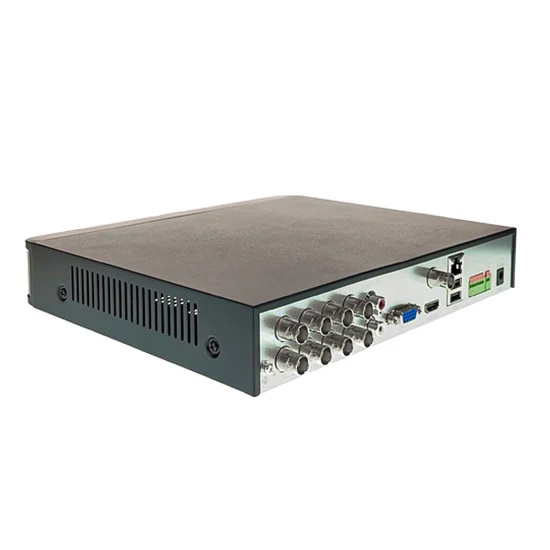

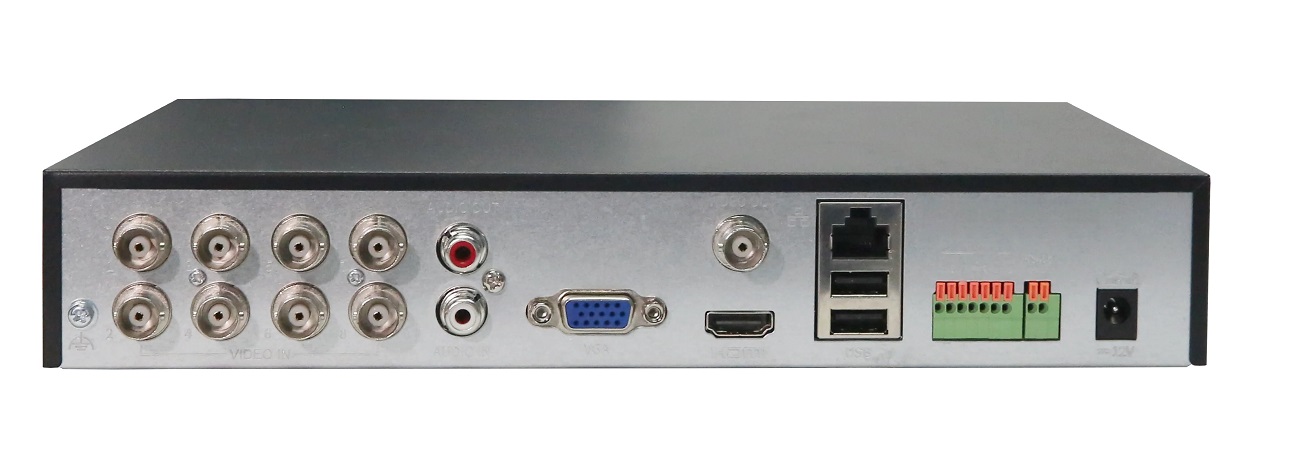

UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)

(image for) UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
(image for) UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
(image for) UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
(image for) UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
(image for) UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
(image for) UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
(image for) UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
  • Model: XVR301-08Q3
  • Shipping Weight: 6 lbs
  • 5 Units in Stock
  • Manufactured by: Uniview

 Ask a Question

$279.95

Add to Cart:

UNV 8 Channel 1-SATA Mini 1U Pentabrid DVR

Part Number: XVR301-08Q3

Video Input: 8 Channel BNC / Up to 12 Channel IP
Video Output: 1-HDMI(4K), 1-VGA(1080P), 1-BNC(CVBS), Simultaneous Output
Video Format: HD-CVI (8MP), HD-TVI (8MP), AHD (8MP), CVBS
Recording Resolutions: Analog Channels - 8MP Lite@8fps, 5MP Lite@12fps, 1080P@15fps; IP Channels - 8MP(4K)@30fps
Bandwidth: 40Mbps (In) / 64Mbps (Out)
HDD Storage: 1-SATA up to 8TB each
Network Ports: Single 10M/100M NIC
Chassis: Mini 1U, Non-rackmountable
NDAA Compliant: Yes
Warranty Period: 3 Years



HDD NOT Included*



ModelXVR301-08Q3
Type8-Channel 1 SATA XVR
SATA1 SATA interface
CapacityUp to 8TB for each HDD
(The maximum HDD capacity varies with environment temperature)
Analog Video Input8-ch, BNC
IP Video Input4-ch(only IP up to 12ch), each channel up to 8MP
Supported Analog Camera TypesSupport AHD input: 8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input: 8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input: 8MP@15fps
5MP@25fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input

Audio CompressionG.711U
Audio Input1-ch, RCA
CVBS Output1-ch, BNC
VGA Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output1-ch, RCA
Two-way Audio1-ch, RCA
Live view displayHDMI/VGA: 1/4/6/8/9/16
Synchronous Playback8
FTP/Schedule/Event Snapshot8-ch snapshot, up to 704*576 resolution
Recording Resolution8MP Lite/5MP Lite/4MP Lite /1080P/720P/CIF
Recording Frame RateMain stream: 8MP Lite@8fps | 5MP Lite @12fps | 4MP Lite@15fps | 1080P@15fps | 720p@30fps
Sub stream: D1@8fps | D1@12fps | D1@15fps | D1@15fps | D1@30fps
Audio Sample Rate8KHz,16 bit per channel
Audio Bit Rate64Kbps per channel
CapabilityAnalog: 8 x 8MP Lite@8, 8x 5MP Lite@12, 8x 4MP Lite@15, 8x 1080P@15
IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30
ProtocolsTCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Incoming Bandwidth40Mbps (Up to 56Mbps after all-analog channel conversion)
Outgoing Bandwidth64Mbps
Web BrowserIE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows

Remote Users128
General AlarmMotion detection
Alert AlarmIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
VCA DetectionUltra Motion Detection(UMD) for analog:8-ch
VCA SearchBehavior Search
Network Interface1 RJ45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel: 2 x USB2.0
RS4851
Alarm In4-ch
Alarm Out1-ch
Power12V DC
Power Consumption: ≤ 10 W (without HDD)
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions260mm ×226mm× 47mm (10.2" × 8.9"×1.8")
Weight≤1.1 Kg (2.42lb)
CertificationUL /CE /FCC /RoHS /WEEE
