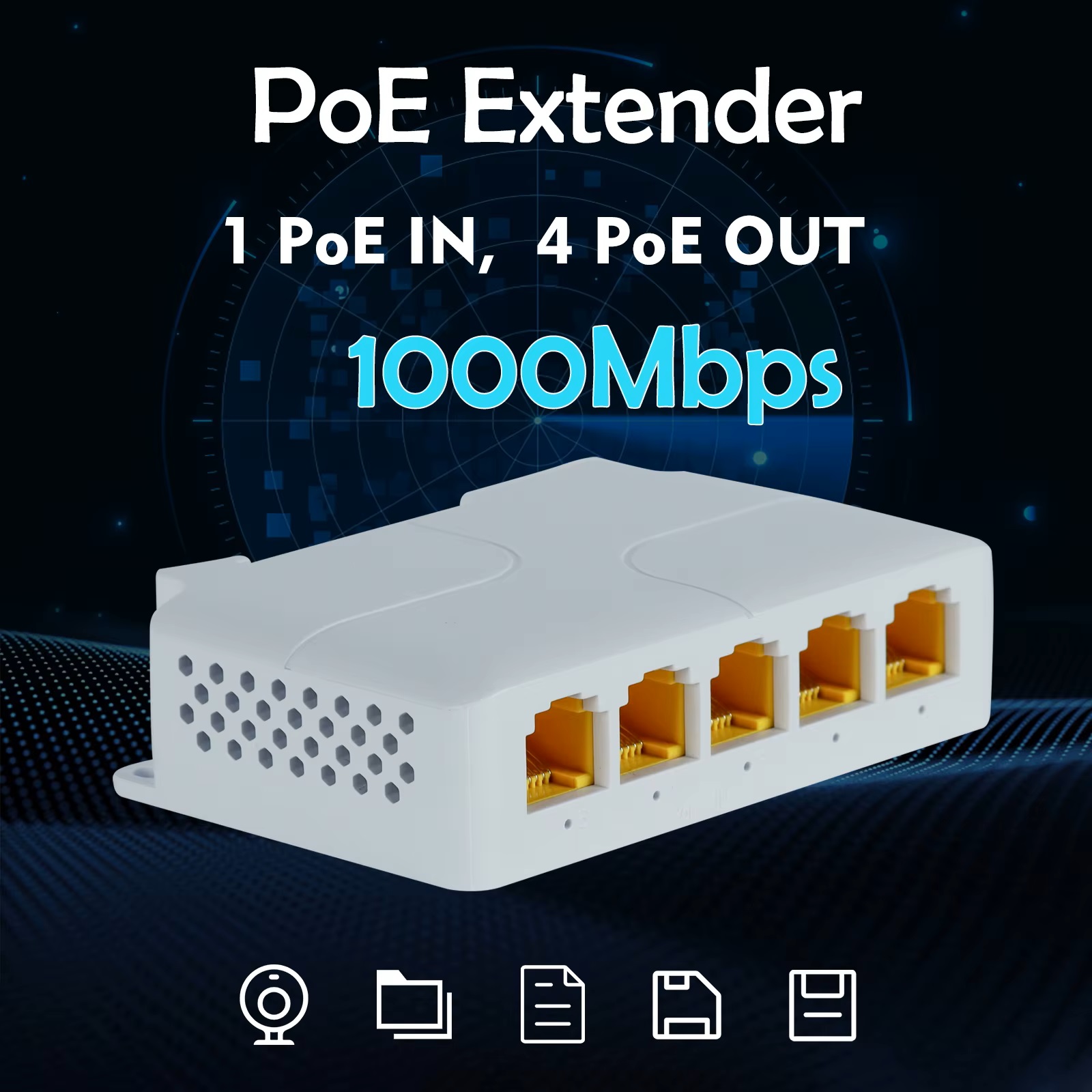

4 Port Gigabit POE Repeater 100/1000M 1 to 3 PoE Extender with IEEE802.3af/at Plug&Play

Gigabit Ethernet PoE Repeater provides 1 port IEEE802.3af/at(PoE) receiving port input, 3 ports output IEEE802.3af/at (PoE) power over Ethernet port output.

Product Description

• Comply with IEEE 802.af Power over Ethernet (10/100M/1000M Supported) Extender the range of PoE an additional 100 meters
• Automatically detects and protects PoE equipment from being damaged by incorrect installation
• Plug-and Play no configuration required

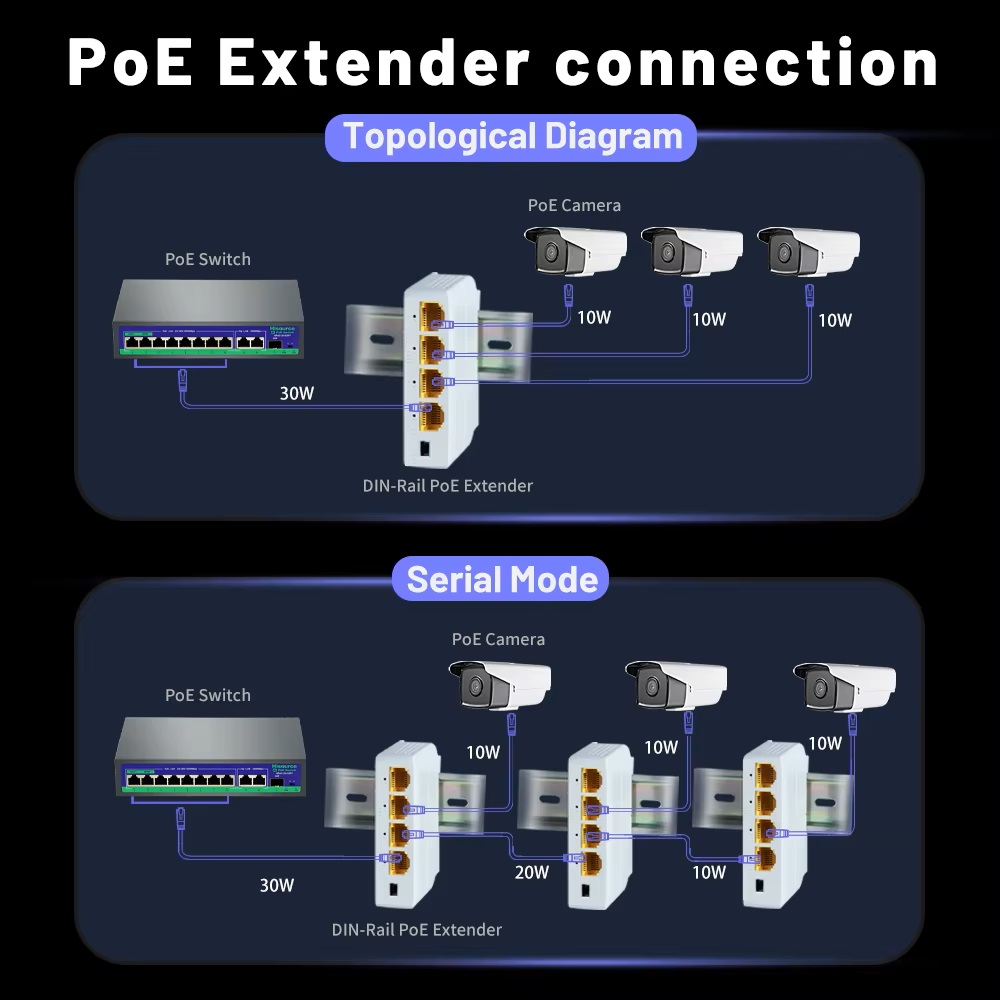

• 3-Port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 ,Cat5e,Cat6,Cat6e,UTP cable.
• 3-Port PoE Extender has 3 10/100/1000M Lan ports, among them, one for power input, the other three for power output. Comply with 10/100/1000 BASE-TX,IEEE 802.3 af-PoE.

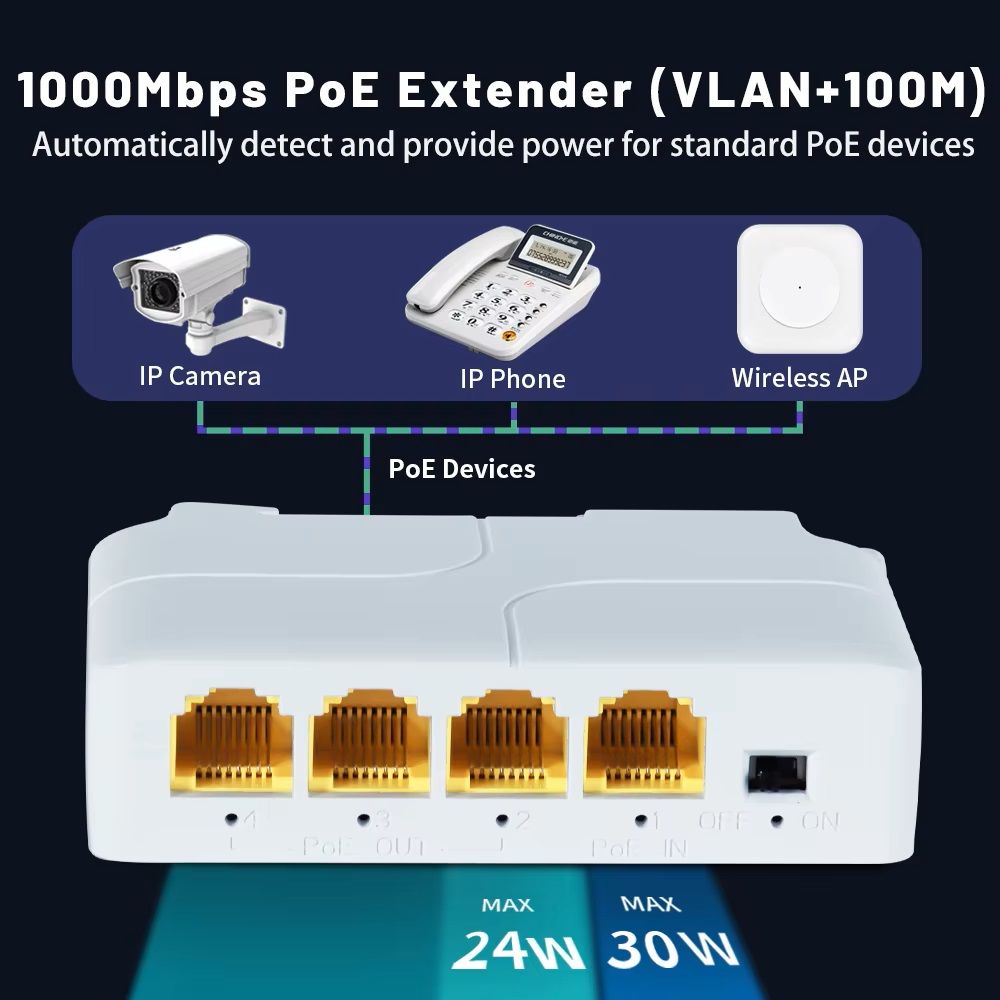

• Used with AP, IP camera, IP telephone and the other network equipment in the situation of the lack of power line or far away from the power outlets
• Installed at hotels, schools, buildings, villages, etc.

Specification

• Network standard: IEEE802.3, IEEE802.3u, IEEE802.3x
• PoE connection standard: IEEE 802.3af/at
• PoE port input power: input maximum 30W
• PoE port output power: output maximum 24W/average 8W per port
• PoE power receiving input transmission core: 1/2+, 3/6-, 4/5+, 7/8-
• PoE power output transmission core: 1/2+, 3/6-

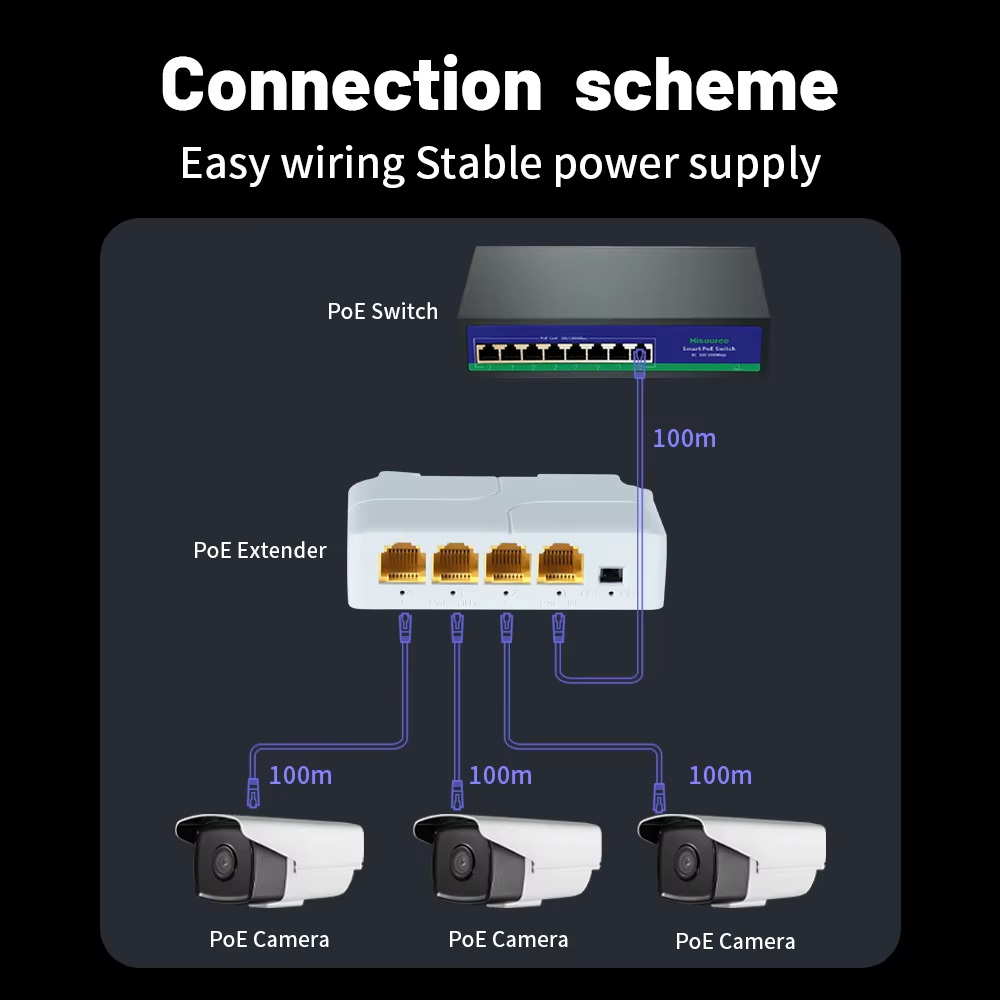

• POE power supply transmission distance: ≤100 meters
• Power supply transmission medium: 10/100/1000BASE-TX: Category 5 and above non-screen shielded twisted pair
• MAC Address Table: 2K
• Packet Buffer Memory: 48 Byte
• Switching Capacity: 1.0Gbps
• Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
• Regulation Compliance: Part 15B, ROHS Directive 2011/65/EU, Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC;
• Working temperature: -10°c to 55°c
• Working Humidity: 10%~90%, No Condensation;

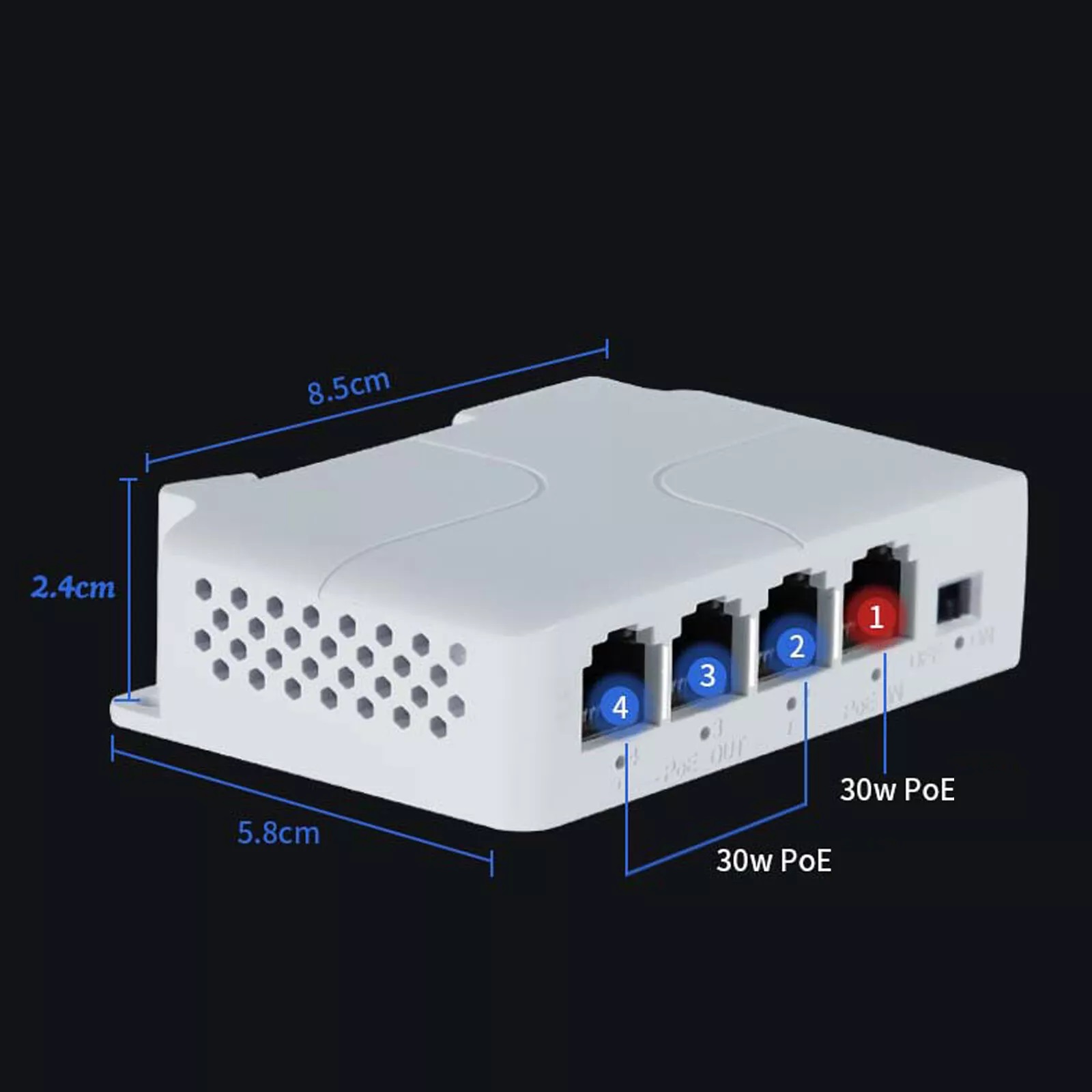

• Dimension: 82x52x23mm
• Weight: 55g
